Why do we need transformations?

Robots employ many different coordinate systems (aka frames) to define their location, the location of their sensors and components, or the location of external entities. Transformations among those frames is necessary for the robot or a robot component to understand how to interpret data that is provided in a different frame. You may not have realized it, but we have already used many frames and implicit transformations in our previous labs. For example, we use the world frame when sensing the drone position, attitude, and velocity, to plan a path and implement the control commands to realize that path. Frames and transformations are everywhere, so let’s learn how to programmatically structure them in ROS.

Learning Objectives

At the end of this lab, you should understand:

• When and why we use transforms
• How to publish a transform in ROS
• How to use a ROS transform listener
• How to use a ROS transform to perform a coordinate transformation
• How to use a dynamic transform in ROS

Before Starting

Be sure to pull the latest code

Scenario Overview

In previous labs, we specified the drone’s goal position using the command:

ros2 topic pub /uav/input/goal geometry_msgs/Vector3 '{x: -2, y: -1, z: 2.5}'

This command sends the drone to a position that we defined in our world frame. The drone navigated based on the assumption that it was operating in that world frame. Now, let’s see what would happen if that assumption does not hold.

For this lab, we will assume you have been hired by an online shopping company that has recently shown interest in delivering packages using drones. You are the lead engineer of the drone delivery system.

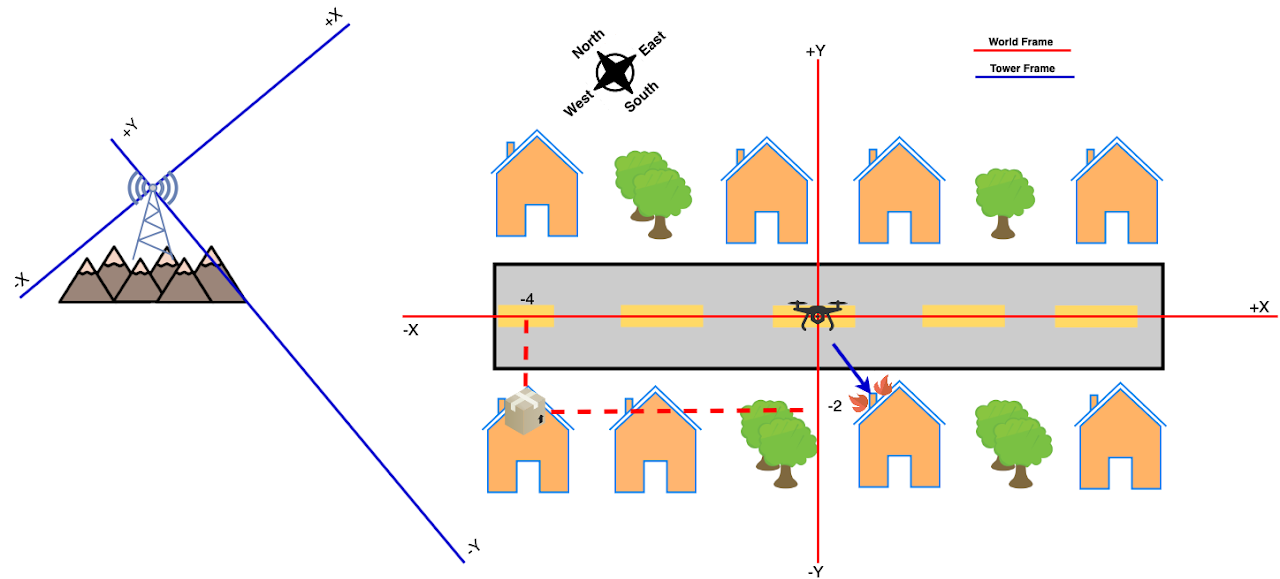

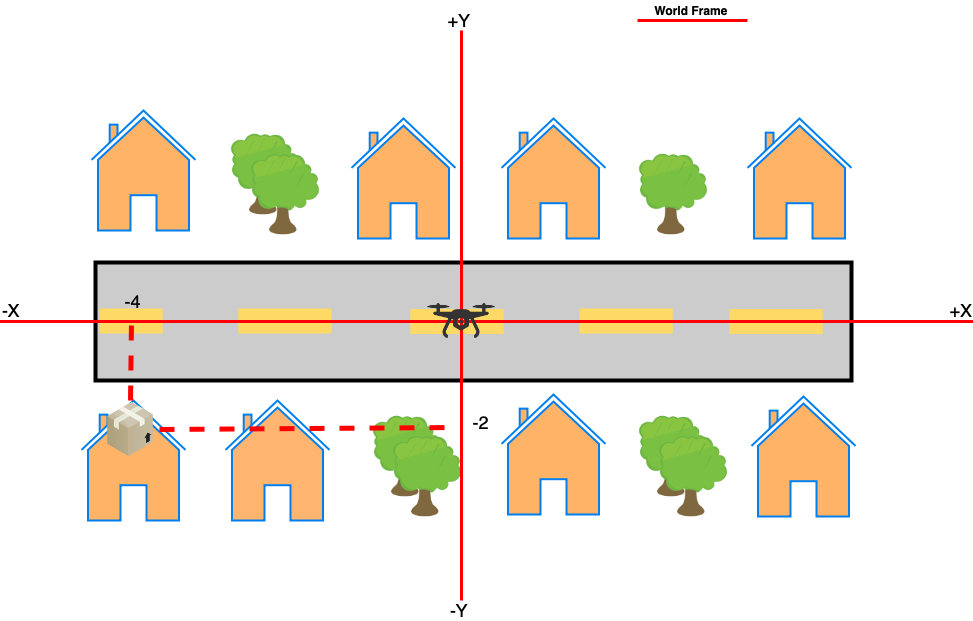

World Frame. In your first tests, you place the drone at the origin of the world frame (as illustrated in the figure above) and try to deliver packages to different houses. You start by delivering a package to the house on the bottom left of the figure (the one with the package). You find that all you need to do is send a Vector3 message to /uav/input/goal containing the coordinates [-4,-2].

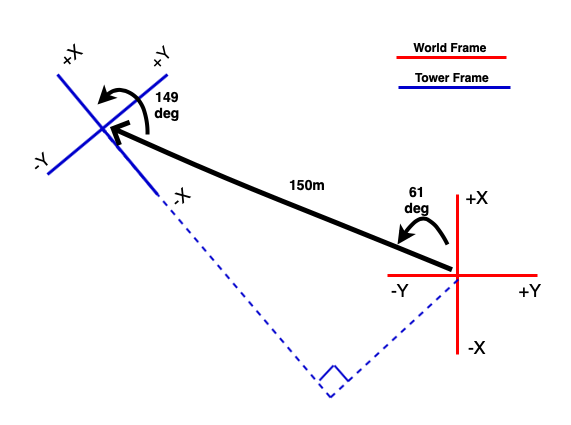

Tower Frame. As you expand your operation, you realize that you need a tower to control your family of drones. You place the tower at the top of a mountain to have longer communication reach. The tower, however, has a frame that is +Y aligned with the magnetic North. The tower then directs the drone to deliver a package to the location corresponding to the same house as before. You send the drone to that location when all of a sudden the drone flights to the right downwards and crashes into the house just below it. What happened? When the tower gave the drone the position to go to, it told the drone where to go in its own frame of reference. When you use poses that are not in the correct frame of reference, it can have unexpected and dangerous consequences.

In this lab, a tower node is provided. The tower will publish goal positions (once a drone’s path is complete) on the /tower/goal topic, using the tower frame. Your job will be to use ROS transforms to convert the tower’s commands into the world frame so that the drone can successfully navigate to the goals positions sent to the drone.

ROS Support for Frames and Transformations

ROS supports transformation between frames through the tf2 package, which provides very rich functionality, well beyond what is covered in this lab.

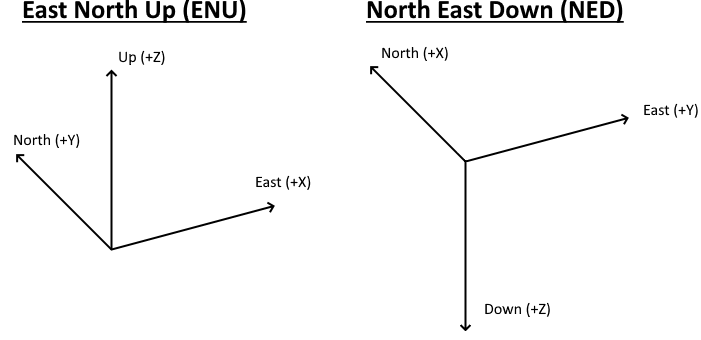

ROS also provides several standardized frames. For example, the ENU (East, North, Up) frame which is commonly used in ground robots has its positive x-axis pointing to the vehicle’s left, positive y pointing north, and the positive z axis pointing up. The frame we will be using in this lab is NED (North, East, Down), which is commonly used in aerial vehicles and has its x pointing north, positive y-axis pointing east, and positive z axis pointing down.

For the first part of this lab, we will be working with a particular kind of transform that does not change over time, known as a static transform. Our transform will aim to transform from the tower frame to the world frame. In contrast, a dynamic transform is one which changes as time goes by. For example, we would need a dynamic transform if our tower was attached to the delivery van; each time the van turned a corner the transform from the vans frame to the drone frame would also need to change. We will explore using a dynamic transform later in the lab.

Exploring the Coordinate Frames in our Simulator

Let’s start by exploring what frames are already available in our simulator. A quick way to do that is using the view_frames tool which will depict the system of coordinates used by a robot. Start two terminals and run the following commands:

Terminal 1:

cd ~/csci_420_robotics_labs/lab7_ws/
colcon build
source ~/csci_420_robotics_labs/lab7_ws/install/setup.bash
ros2 launch flightcontroller fly.launch

Terminal 2:

source ~/csci_420_robotics_labs/lab7_ws/install/setup.bash
cd ~/csci_420_robotics_labs/lab7_ws/
ros2 run tf2_tools view_frames

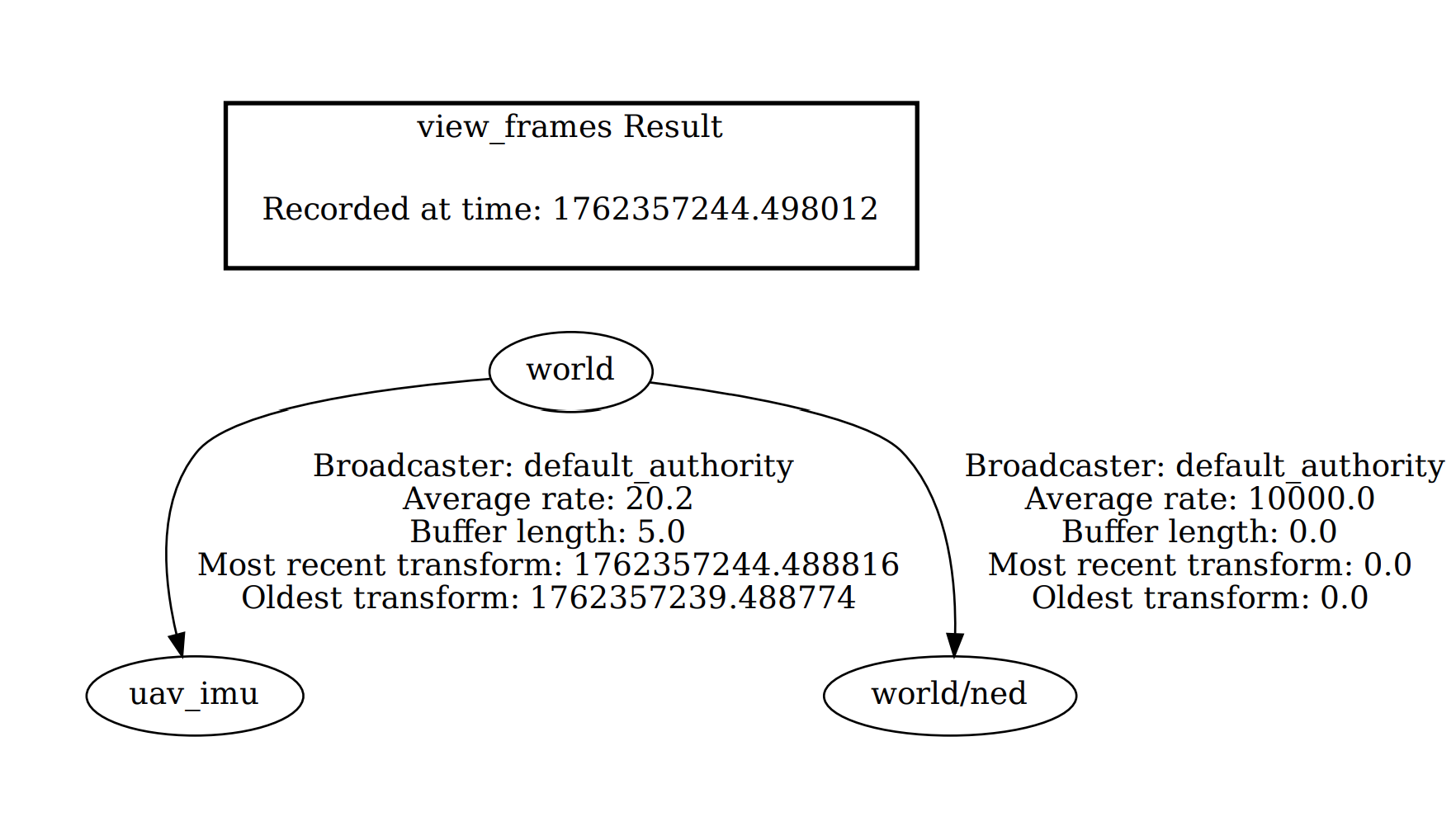

The view_frames.py script provided from tf2_tools produces a PDF giving information about the current transformations available. In the ~/csci_420_robotics_labs/lab7_ws/ directory you should have a file frames_<timestamp>.pdf with a content similar to the image below:

The picture above shows us that we have a small tree of transforms, rooted in the frame world with two child frames. Note that in ROS, each frame has a unique string identifier.

The first child frame is the world/ned frame. As discussed above, drones often use a NED coordinate system, and thus this transform is taking the world frame, which is in ENU, and converting it to NED. This would be useful for, e.g., drones using this coordinate system to fly. This system of coordinates is always fixed.

The second child frame is uav_imu which corresponds to the body frame of the drone with its origin at the center of the robot. Thus, the body frame moves with the drone and it is valid only for a small time interval. For example, if we were to use the drone’s camera to determine the location of the an object relative to the drone, the camera would operate in the uav_imu frame.

The important part to notice is that ROS provides a way to define frames, to access them, and to relate them (the labels associated with each edge will be explained as we introduce more functionality of the tf2 package.)

Defining a transformation in ROS

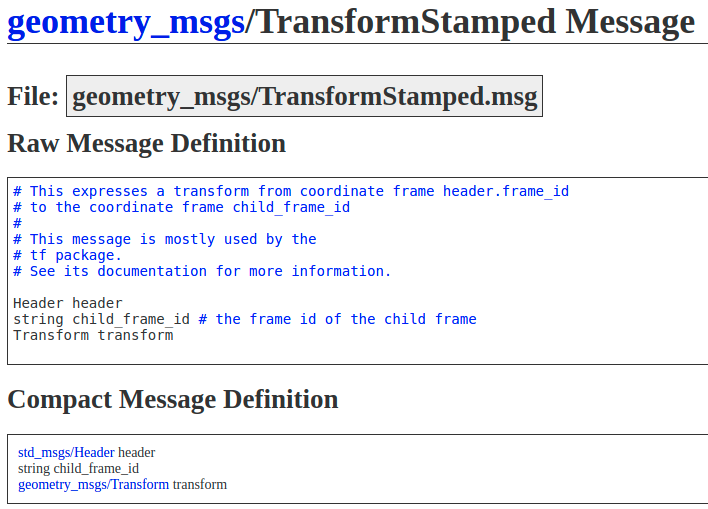

To support transformations of geometric data, ROS provides the message class geometry_msgs/TransformStamped:

Using this message, a transformation is a function that transforms coordinates from the frame specified in header.frame_id to the coordinates specified in the child_frame_id.

Going back to our tree of frames in the view_frames output, the left-edge has header.frame_id set to 'world', and child_frame_id to 'world/ned'.

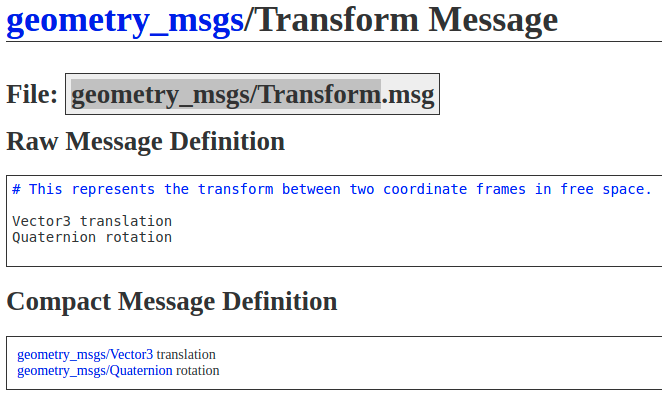

The transform attribute is defined as a message of type geometry_msgs/Transform, which consists of the mathematical transformation between two 3D Cartesian frames translation followed by a rotation.

The translation component is similar to a transformation in geometry and adds translation.x, translation.y and translation.z to the parents frames x, y and z coordinates.

A rotation can be specified either using Euler angles (roll, pitch, and yaw) or a quaternion (a vector in x,y,z, and a rotation w).

Defining our own Transformation

In this lab, we are aiming to transform the tower reported positions into the corresponding positions in the world frame that our drone understands. The diagram below gives specifics about the location of the tower relative to the origin of our world.

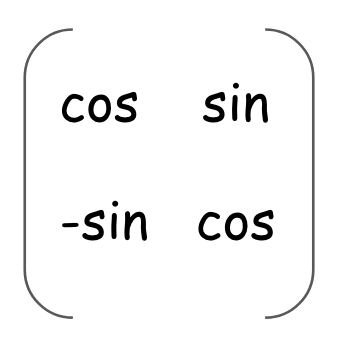

Now, using trigonometry (Transformation lecture – just for 2D in this case because we are ignoring altitude), installop the transformation function to do just that.

Remember that the transform, similar to a geometry_msgs/Transform message, must include a translation and a rotation. Use Euler angles for the rotation. Since we are using the NED convention (x points north, y points east, and z points down), the rotation matrix must be adjusted to:

A positive yaw angle is one that moves from the +X axis to the +Y axis. In the case of NED frames this means that positive is clockwise.

Self-Checkpoint

To test that you have derived the correct transformation, manually transform these inputs using your formulas and check that you get the following output. Do not move on with the lab until your transformation is correct.

• World [0.0, 10.0] -> Tower [-133.6, 85.9]
• World [10.0, 10.0] -> Tower [-124.9, 90.9]
• World [-10.0, 10.0] -> Tower [-142.2, 80.9]
• World [10.0, -10.0] -> Tower [-114.9, 73.6]
• World [-100.0, 100.0] -> Tower [-265.2, 113.9]
• World [-120.0, 80.0] -> Tower [-272.5, 86.5]
• World [-200.0, 100.0] -> Tower [-351.8, 63.9]

Note: These answers have been rounded to the first decimal.

Broadcasting a Transformation

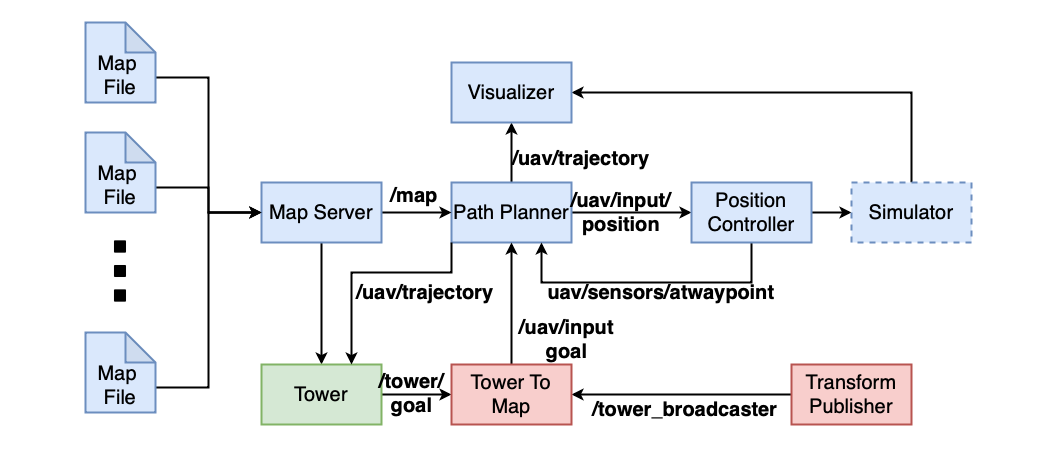

Let’s now use that transformation as part of our system. The architecture of the system we will installop for Checkpoint #1 is shown below. The blue nodes are similar to those in Lab 7. The green node is the new Tower node that is given to you, and the red nodes are what we will need to implement.

The package tf2 provides a broadcasting mechanism through which it sets an internal node to send out time stamped transformations to anyone that is listening. The idea is that all components of the system can access and use the transforms provided by other components, and continually broadcasting them makes sense if they are likely to change over time or if they are consumed at different times.

A node that needs to retrieve transformations from the system creates a transform listener. When the node needs to apply a transformation from frame A to frame B, it uses the listener to obtain that transform from the system and then applies it. Observe that a transform listener can be used to retrieve multiple transforms, while a typical ROS subscriber may only receive messages on one topic.

Broadcasting setup. As mentioned earlier, in this lab we will initially use a static broadcaster since the transformation from tower frame to world frame is time-independent. Broadcasting static transforms is so common, that tf2 provides a built-in static_transform_publisher node that we can add directly to our fly.launch file.

<node pkg="tf2_ros" exec="static_transform_publisher" name="tower_broadcaster" args="TODO"/>

static_transform_publisher takes as arguments the three components of the translation, the three angles of rotation, the parent frame id, and the child frame id as follows.

 x y z yaw pitch roll frame_id child_frame_id

Our job now is to replace the TODO in the arguments in the launch file line above with your computed transform. You must have the frame_id be the world frame and the chile_frame_id be the tower frame

A few things to keep in mind:

• In our context: z, pitch, and roll should be set to zero since we are operating in just 2D.
• static_transform_publisher only requires the rotation angle between the frames over x and y (rotation between x and y is the yaw) from which it computes the necessary trigonometry for us. The rotation angle must be specified in radians (not degrees) and again since our frames are in NED, clockwise is considered a positive rotation.
• We are converting from the tower frame to the world frame
• Precision is important. While above we rounded to 2 decimal places, consider using full decimal places in the launch file. 2 decimal places is not sufficient.

Once you are done, ROS offers capabilities to inspect the values sent through the system. To view the transformation you just defined, use the following command after you start the simulator and confirm that the translation and rotation match what you expect from your calculations above:

ros2 run tf2_ros tf2_echo world tower
>>> Translation: [..., ..., ...]
>>> Rotation: in Quaternion [..., ..., ..., ...]
            in RPY (radian) [..., ..., ...]
            in RPY (degree) [..., ..., ...]

Now, when we use it in our system, we will ask for the transformation in the other direction. To view this, run:

ros2 run tf2_ros tf2_echo tower world
>>> Translation: [..., ..., ...]
>>> Rotation: in Quaternion [..., ..., ..., ...]
            in RPY (radian) [..., ..., ...]
            in RPY (degree) [..., ..., ...]

Checkpoint 0

1. How do the transforms in the different directions relate?

Listening and Transforming

Using static_transform_publisher we just set up a node to broadcast the transform from the tower frame to the world frame. Our drone needs to listen for this transform so that it can transform the goals that it receives in the tower frame to the world frame.

Listening Setup

To listen to the broadcasted transforms, we use a TransformListener. This can be created as follows:

from tf2_ros.buffer import Buffer
from tf2_ros.transform_listener import TransformListener
# ...
   # in the constructor
   self.tfBuffer = Buffer()
   self.listener = TransformListener(self.tfBuffer, self)

Since nodes in ROS run in their own process and their execution order is not enforced, it is possible that the transformation you need is not available when requested, so it is a good practice to enclose the lookup call for the transform in a try block as follows. We will use the code below in our main loop to always pull the most recent transform. Although this is a static transform and thus we do not expect it to change, asking for the transform every time through the loop allows us to not have to wait for the static transform to become available, and also re-use the same code constructs when we employ dynamic transforms.

  try:
     # lookup_transform arguments are target_frame, source_frame, and time
     t = self.tf_buffer.lookup_transform('world', 'tower', rclpy.time.Time())
  except TransformException as ex:
     self.get_logger().info(f'Could not transform world to tower: {ex}')
     return

Applying the Transform

The above code gave us the variable transform. One of the functions provided from tf2 allows us to apply transforms directly to Geometry PointStamped messages to move across frames as shown below:

from tf2_geometry_msgs import do_transform_point
#...
new_point = do_transform_point(point, transform)

Where point is point in coordinates you want to transform, and transform is the transform we just looked up and intend to apply to that point.

Using the Goals set by the Tower Frame in the Drone Planner

Let’s create a node tower_to_map.py that subscribes to /tower/goal (which is in the tower frame) and publishes a goal for our drone on the topic /uav/input/goal (in the world frame). The tower waits for about 10 seconds before it broadcasts the first goal. The node will use the transform declared by the static_transform_publisher to transform the goal across the frames. To do this, complete the following steps:

Step 1: Skeleton code has already been provided in the simple_control folder. Open that now.

Step 2: Add the node to fly.launch.

Step 3: Implement the TODOs using what we just learned about trasnforms.

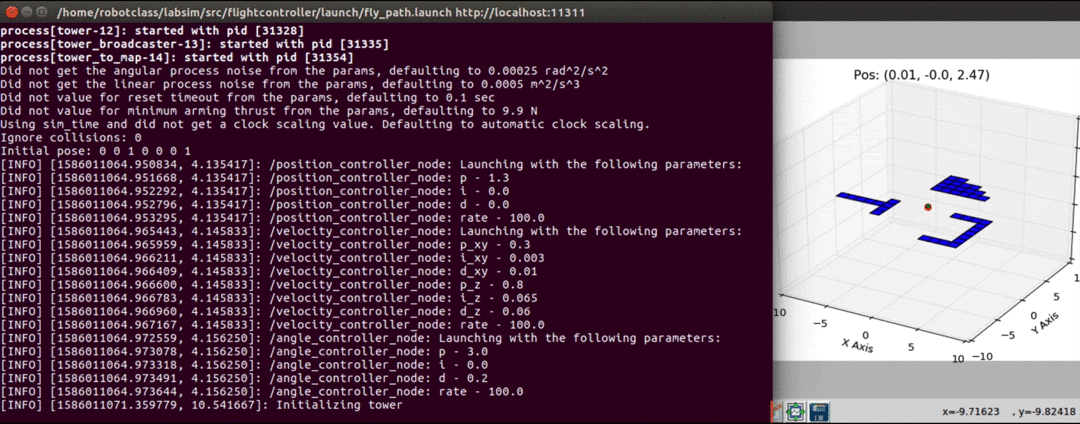

After you have implemented this node, the tower node will publish a new goal after your drone has reached its current goal. Thus, your drone should now successfully navigate the map getting new goals each time it reaches its current goal.

Checkpoint 1 (Worth 50% of a lab)

1. Explain how you calculated the values for args for the tower_broadcaster node
2. Run the simulator and show that your drone is capable of reaching 3 different goals sent by the tower.

Bonus Checkpoints, total 30% extra credit on Lab 7

A PID Controller is an algorithm that uses the error between a setpoint and a measurement to adjust the system’s output with the goal of maintaining the set point. A PID relies on three terms (P,I,D) to control the system output to minimize the error. PIDs’ broad applicability and popularity in robotics makes them worth their own lab.

OMEGA Engineering: What is a PID Controller and how does it work?

We will be implementing a simple drone that operates in two dimensions and aims to move to a set of waypoints. We will use a PID controller to help the drone move between these waypoints, with one PID controller for each dimension. The PID controller tells the drone what velocity to move in each direction. Even though the error term for the PID is in units of distance, i.e., how far am I from the waypoint in this dimension, the output controls the velocity. This is a common occurrence in robot controls, where the output you control is different from the output you are measuring. Think about driving a car: the car has an accelerator and a brake that each control positive or negative acceleration which we then use to change our position.

In the environment, there is a strong cross-wind in the Y direction, but not in the X direction. We will explore how this impacts the tuning of our PID controller.

For these checkpoints, you will need to implement the basic PID algorithm in the class velocity_pid.py. You will then test the PID using debug_pid.py as explained in the checkpoints below. You may not modify debug_pid.py.

Bonus Controls Mini Checkpoint 1, 10% extra credit on Lab 7

In the first checkpoint, we will work on the PID controller for the X dimension. Once you have implemented the PID controller in velocity_pid.py, you will run tests in the form:

python debug_pid.py [px, ix, dx]

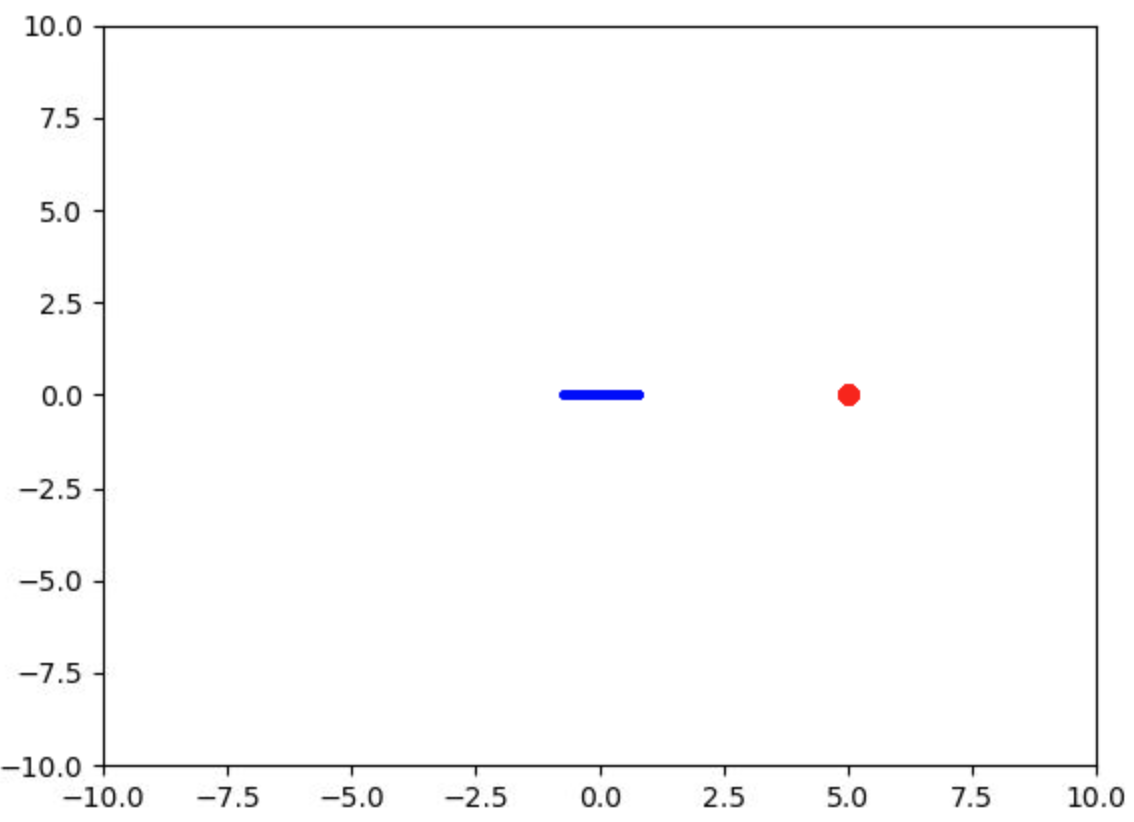

Where px, ix, and dx are the P, I, and D values for the X dimension. When you launch the debugger, a window will appear in the VNC browser that shows the drone trying to navigate from the starting position at the origin, to the first waypoint at x=5, y=0.

There is noise in the system, so the drone will not always respond exactly to the command, and will move around slightly even when not commanded. For example, the below image shows the output of python debug_pid.py [0,0,0]. With all 0 parameters, the PID controller provides no input and the drone is blown around by the noise without reaching the waypoint.

1. Tune the PID controller so that the drone reliably reaches the waypoint in less than 30 steps. What is the impact of changing the different parameters? Do you need all of the parameters?

Bonus Controls Mini Checkpoint 2, 20% extra credit on Lab 7

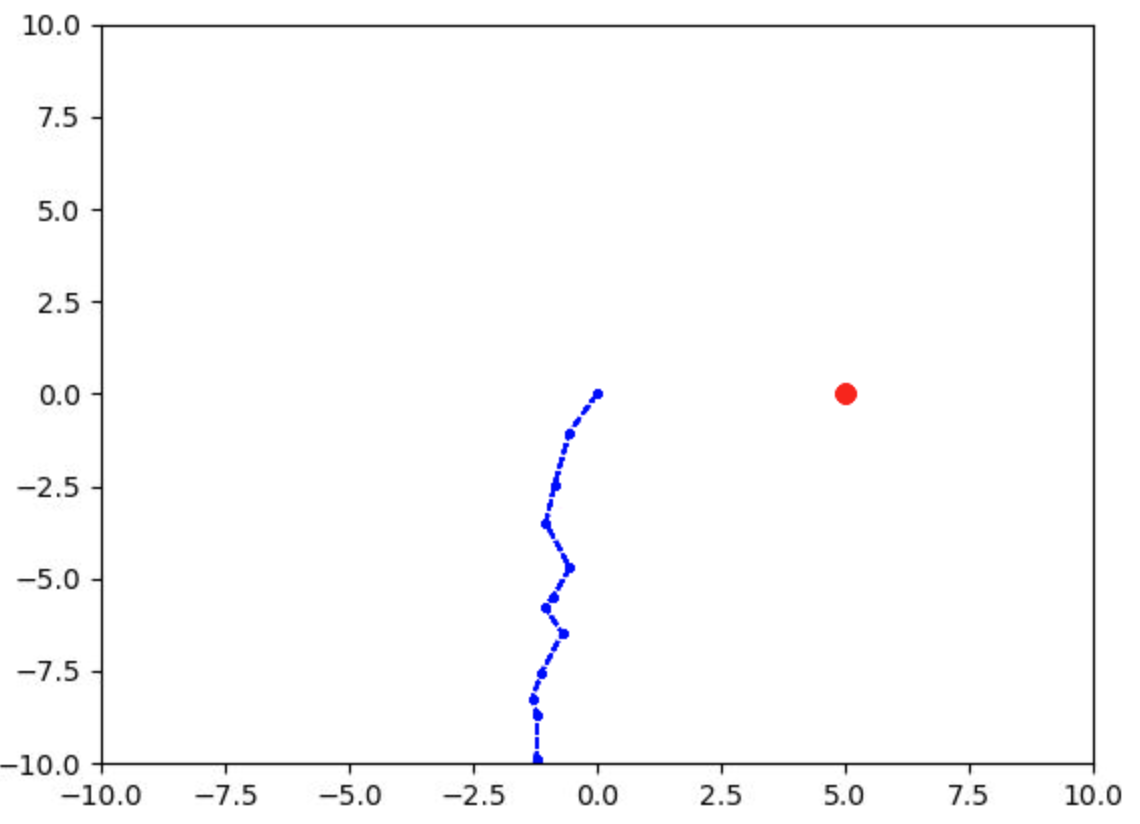

Once the drone reaches the first waypoint, it the program will start trying to send it to the next waypoint, x=5, y=5. However, with only a controller for the X dimension, the drone will not be able to reach it. To enable the PID controller for the Y dimension, invoke the debugger as:

python debug_pid.py "[[px, ix, dx], [py, iy, dy]]"

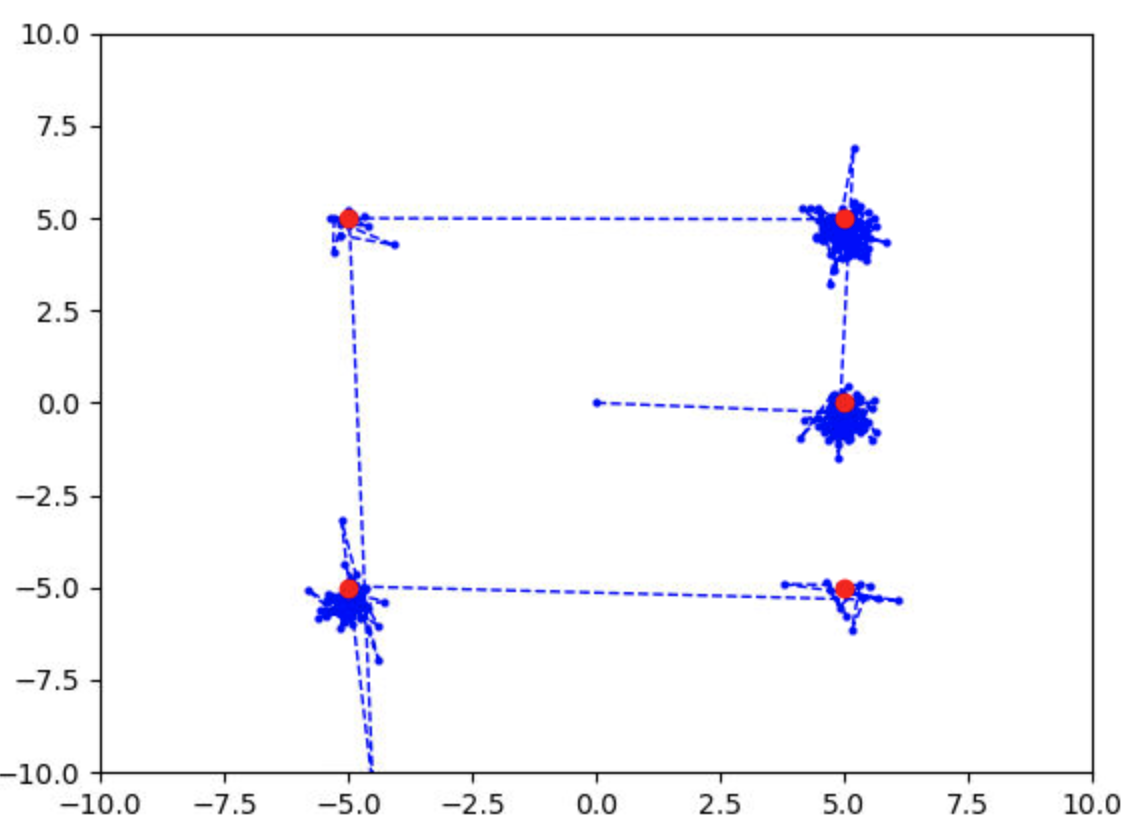

Where the array now contains separate parameters for the X dimension and the Y dimension. The image below shows the result of running python debug_pid.py "[[0,0,0],[0,0,0]]". As noted, there is a strong cross-wind in the Y dimension that constantly blows the drone off course. Here, without any control in the Y dimension, the drone is quickly blown off screen.

1. Tune both sets of PID parameters so that the drone can reach each of the waypoints. How do the parameters for Y differ from X? You may consider adjusting the PID implementation to include more advanced features like integral reset. Below is an example of a PID controller being used to complete all of the waypoints:

Congratulations, you are done with lab 7!

Final Check

1. How do the transforms in the different directions relate?

2. Verify that your drone can visit the points given by the tower

   1. Explain how you calculated the values for args for transform
   2. Run the simulator and show that your drone is capable of reaching 3 different goals sent by the tower.

Bonus:

1. Show the PID working solely in the X component to reach the first waypoint.
2. Show the PID working in the X and Y components to navigate to each waypoint.
